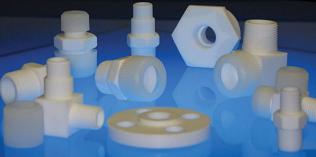

IPS offers PTFE Fittings and Connectors which provide corrosion protection and media purity with used with PTFE pipe. Our Fittings & Connectors are designed with all wetted surfaces constructed from the purest of Fluoropolymer (PTFE). These components are chemically inert and corrosion resistant.  Click here to jump to our Fitting & Connector Online Catalog or search below for a specific fitting or connector style.



IPS machined plumbing supplies are well suited for extremely corrosive environments. Our PTFE pipe fittings and connectors are used throughout the pharmaceutical, semiconductor, gas handling and chemical processing industries.



FITTING MATERIALS AVAILABLE

Machined Polytetrafluoroethylene (PTFE)

Machined Polyvinylidene Fluoride (PVDF)

Machined Polyether Ether Ketone (PEEK)



THREE COMPRESSION NUT MATERIAL TYPES

HA - Injection Molded PVDF Nut** (Standard Configuration - if left blank HA is assumed)

TA - PTFE Nut with Anodized Aluminum Support Band

TS - PTFE Nut with Stainless Support Band



**All HA style fittings are standard equipped with a PTFE ferrule & Kynar (PVDF) Gripper



FLARED FITTINGS

Male Connector

Female Connector

Union Elbow

Union Elbow Reducer

Union Tee

Male Run Tee

Male Branch Tee

Bulkhead Union

Bulkhead Male Connector

Bulkhead Union Reducer

Union

Union Reducer

Male Elbow

Female Elbow

Flared Nut

TUBE FITTINGS

Barbed Fitting

Bugle “Bug” Straight Connector

Bugle “Bug” Tee (call factory)

Bulkhead Female Connector

Bulkhead Male Connector

Bulkhead Union

Female Branch Tee

Female Connector

Female Elbow

Female Run Tee

Male Branch Tee

Male Connector

Male Elbow

Male Run Tee

Reducing Union

Tube Cap

Tube Insert

Union

Union Cross

Union Elbow

Union Elbow Reducer

Union Tee

PIPE FITTINGS

Bushing

Coupling

Elbow

Female Reducer

Pipe Nipple

Pipe Union

Plug

Tee

Female Cross

Female Cap

Nipple Reducer

Street Elbow

Male Elbow

Male Elbow Reducer

Male Tee

SPARES

Ferrule Plumber

Ferrule Gripper**

Ferrule One Piece

Nut

Panel Nut (call factory)

**All HA style fittings are standard equipped with a PTFE ferrule & Kynar (PVDF) Gripper

MINI FITTINGS

Mini Fittings



SPECIFICATIONS: Fitting Assembly

Pressure Ratings:

Performance at ambient room conditions: 120 psi for 1/16” fittings linear decreasing to 80 psi for up to 3/4” fittings and 60 psi for fittings larger than 3/4”.

Performance at elevated temperatures up to 85ºC/185ºF: 90 psi for 1/16” fittings linear decreasing to 60 psi for up to 3/4” fittings and 40 psi for fittings larger than 3/4”.

Contact factory for pressure temperature ratings above 85ºC / 185ºF.

Materials of Construction

Fittings: Machined from virgin Polytetrafluoroethylene (PTFE). This includes our PTFE connector options as well as standard and custom order tube male connectors.

Ferrules: Ferrules are machined from virgin Polytetrafluoroethylene (PTFE). All ferrule pipe fittings are designed to stand up to extreme environmental and media temperatures and conditions.

Grippers: The Gripper in the two piece Ferrule-Gripper assemblies are manufactured from PVDF.

Nuts: The “HA” style nuts are molded PVDF. The “TA” style nuts are machined from PTFE and include an external anodized aluminum band. “TS” style nuts are also machined from PTFE but include an external stainless steel band.

Pressure Performance Rating

Pressure performance ratings for our PTFE connectors, ferrule pipe fittings, and PTFE pipe fittings are based on laboratory testing, industry standard material characteristics and historical data. A combination of extreme temperature and pressure may affect these products. It is recommended that the user satisfy themselves as to the suitability of these products for their application.

IPS Fittings and Connectors





Typical Ordering Format

MC-F-86-HA

HA = Injection Molded PVDF (HA is standard / default / if left blank HA is assumed)

TA = Teflon Nut with Outer Aluminum Anodized Band

TS = Teflon Nut with Outer Stainless Steel Band

MC = Indicates Type of Fitting

Example: MC-F-86-HA = Male Connector

F = Indicates Connection Size

Example: MC-F-86-HA = Male Connector

F = Fractional Size Tube Fitting

M = Metric Size Tube Fitting

P = Pipe Fitting

FF = Fractional Flared

86 = Indicates Fractional Size of Connection

Fractional Size to connect 1/2” O.D Tubing to 3/8” MNPT, PVDF Nut

Tube O.D., FNPT, MNPT, or Flared I.D

Example: 6 = 6/16” (3/8”), O.D

6 = 6mm Tube O.D (for metric integer represents mm size)

6 = 3/8 Flared I.D (for imperial integer represent 1/16" increment)

NOTES:

Tube O.D or Flare O.D is Listed Before NPT Size Indicates Fitting Category

Exceptions to above ordering procedure Barbed, Bugle, and Mini Fittings



Click here to jump to our Online Fitting & Connector Catalog
